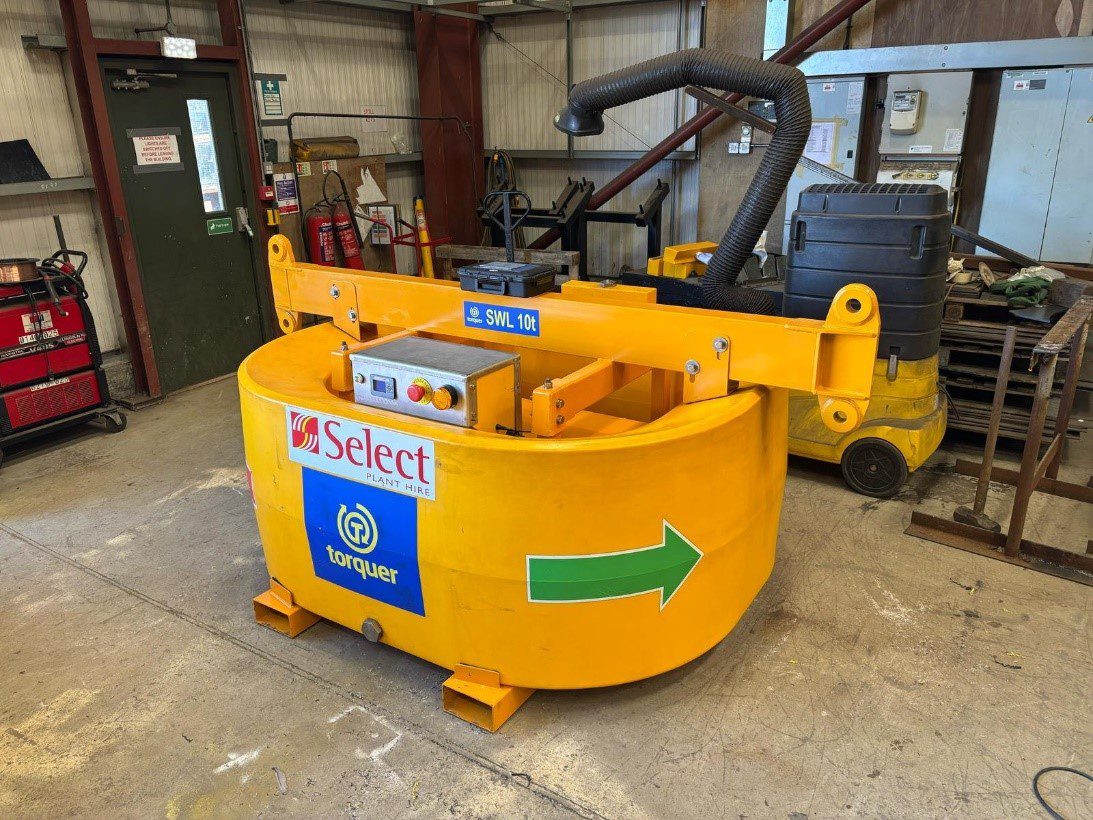

HALO 2000SP
This is our standard HALO, offering remote orientation control of 95% of loads on most construction sites.
Specifications
| Item | Values |
| Dimensions of Unit | 2m x 1.7m x 0.75m |
| Tank Capacity | 1173l |
| Spreader Beam & Banding Weight | 300kg |
| Unit TARE Weight | Approx. 330kg (AGM Batteries) |
| Total Weight When Filled (fresh water) | Approx. 1800kg |
| Typical Usage Time | 12hrs |
| Charging Time From 50% Discharge | 4hrs |
| Built-in battery charger | 110V AC (16A 2P+E inlet) |
| Max Radio Transmitter Range | 1000m |
| DC Electric Motor Spec. (Rated V x Rated A) | 48V x 210A (10kW) |
| Thruster Spec. (Force / Revs) | 100kgm / 4000 revs/s |
| Standard HALO 2.5m Spreader Beam WLL | 10Te |
| ML Capacity | 350Te.m² |
| Lifting Tackle | 2 x 17te Shackles, 2 x 13.5te Shackles |

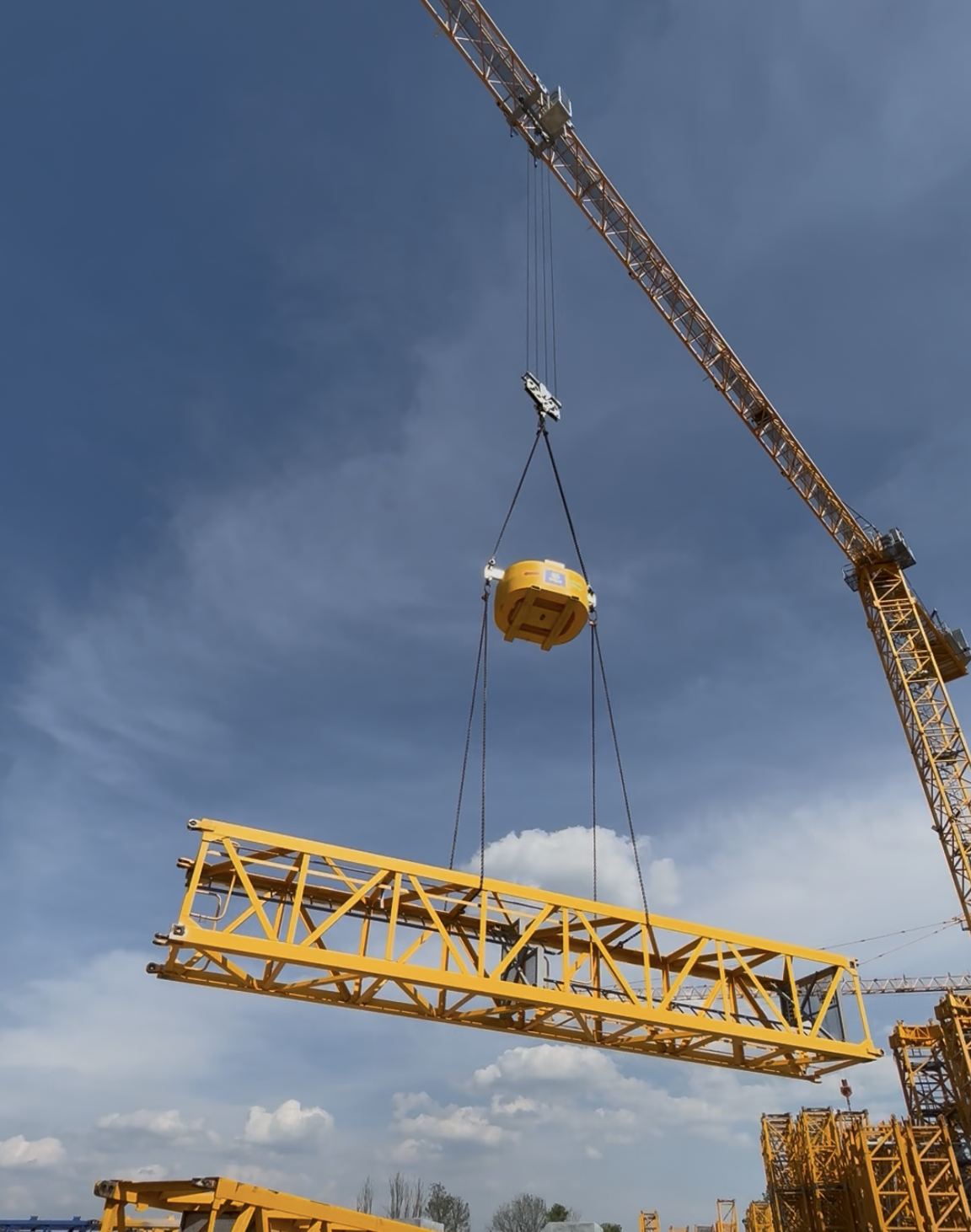

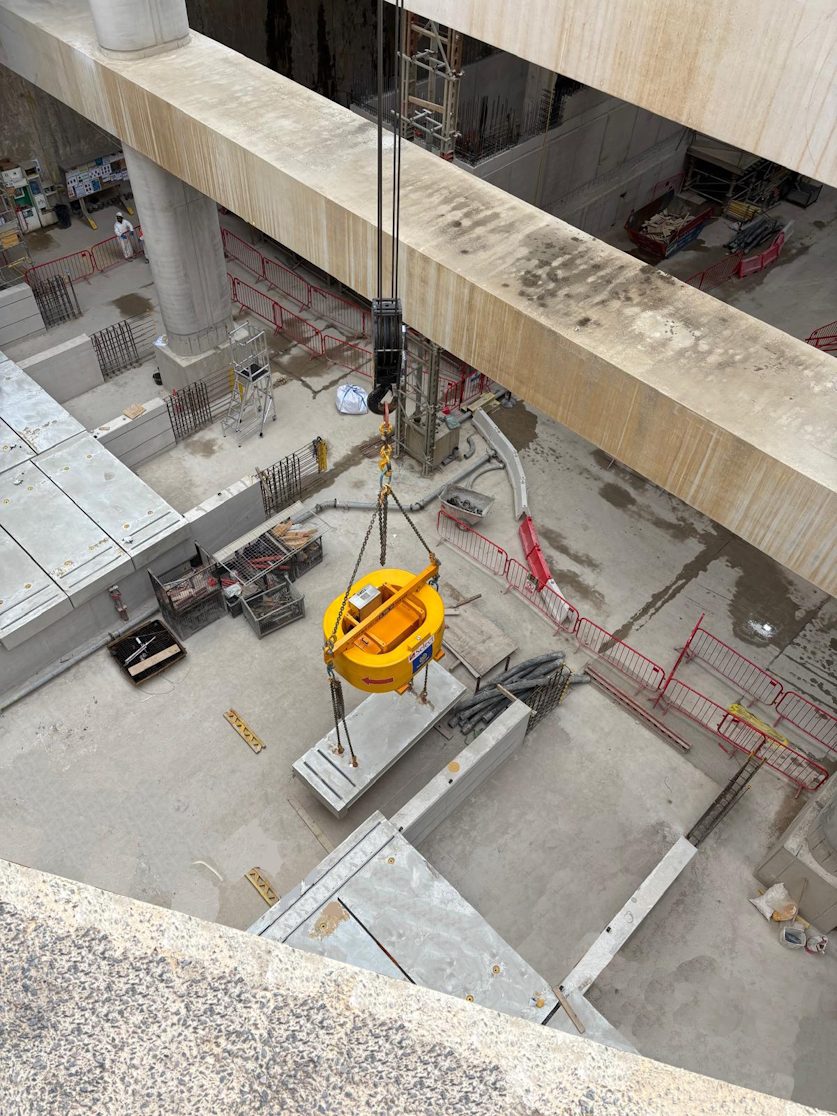

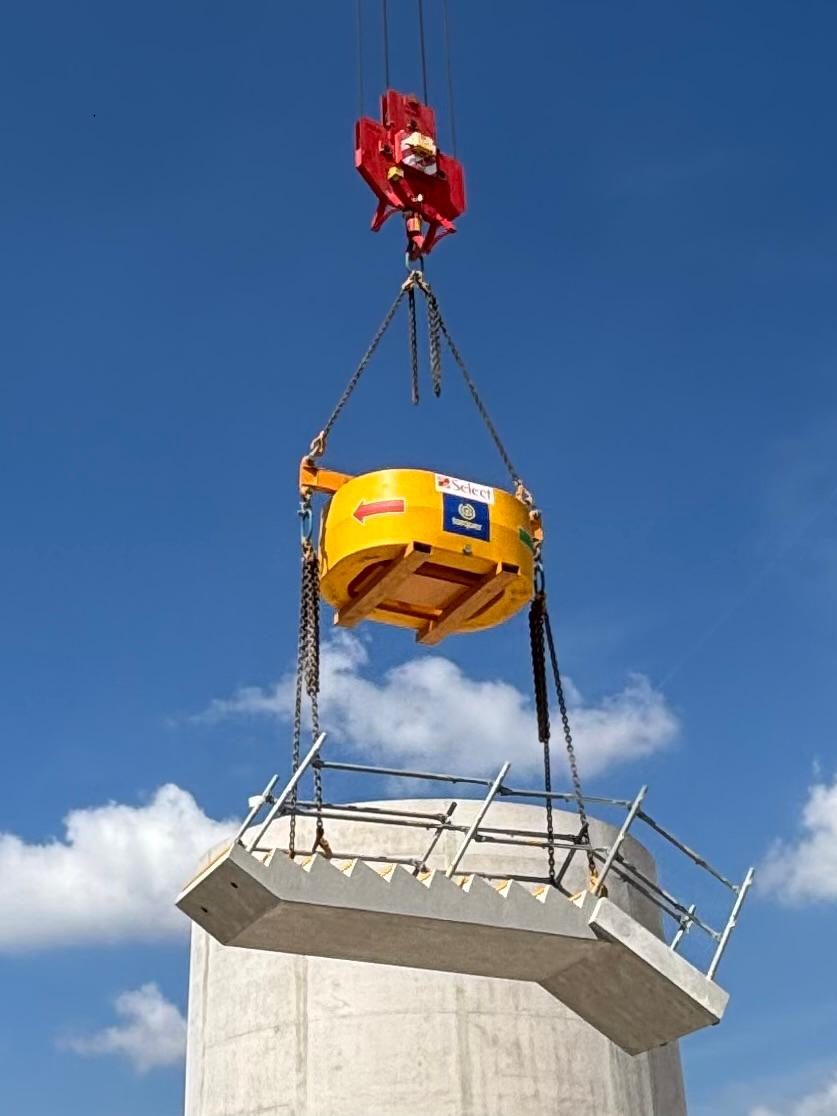

The HALO 2000SP is the ideal tool to have on any construction site where various shapes and sizes of loads are being lifted regularly. Handling load weights of up to 10Te, this versatile and robust unit provides all the capability needed for lifting and landing loads efficiently and safely around a worksite, and particularly saves time where loads need to be lifted to heights, such as high rise constructions, or within narrow lifting zones, where tag lines will struggle to maintain control of the load.
Related Products
Modular HALO
The concept drawing above shows our latest design. This modular unit can be sized to fit any project and resized by extending or reducing the pipe sections.
Container HALO
This HALO was designed to be mounted on an auto connect ISO container lifting frame to provide precise orientation positioning from dockside to vessel.
