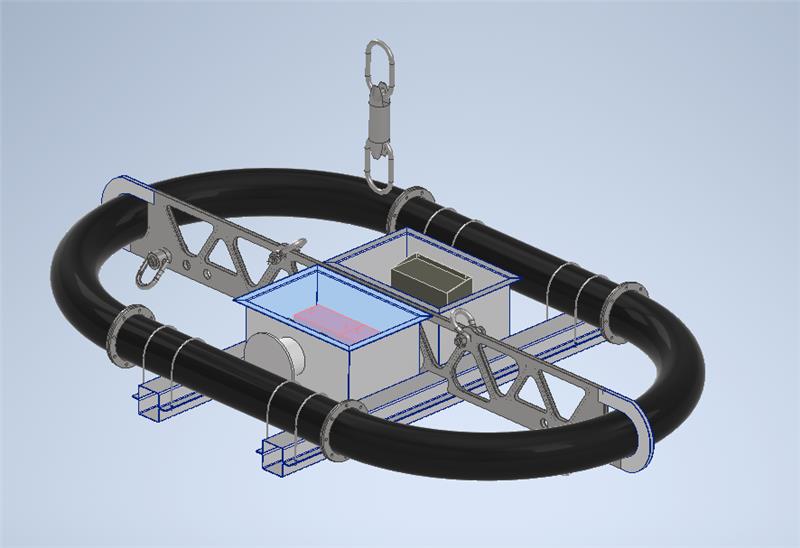

Modular HALO
This is our next generation HALO, with pipework modules to create specific sizes to fit whatever load is to be lifted.
Specifications
| Item | Values |
| Dimensions of Unit | 2.5m x 1.5m x 0.5m (min) |
| Tank Capacity | 400L (min) |
| Total Weight When Filled (fresh water) | 1Te approx. |
| Typical Usage Time | 12hrs |
| Charging Time From 50% Discharge | 4hrs |
| Built-in battery charger | 110V AC (16A 2P+E inlet) |
| Max Radio Transmitter Range | 1000m |
| DC Electric Motor Spec. (Rated V x Rated A) | 48V x 210A (10kW) |
| Thruster Spec. (Force / Revs) | 100kgm / 4000 revs/s |
| ML Capacity | 110 Te.m² |
The Modular HALO has the flexibility to be configured to suit whatever load is to be lifted. Different sizes and weights of loads can be controlled easily. Optimising the HALO size for minimum water weight to control the load allows the crane to operate at it’s maximum possible radius when the HALO is used.
