Container HALO
There are various options for using a HALO to orientate containers or cabins, including auto lock and unlock connections to the load.
Specifications
| Item | Values |
| Dimensions of Unit | 2m x 1.7m x 0.75m |
| Tank Capacity | 850L |
| Unit TARE Weight | 1300Kg (AGM Batteries) |
| Total Weight When Filled (fresh water) | 2150Kg |
| Typical Usage Time | 12hrs |
| Charging Time From 50% Discharge | 4hrs |
| Built-in battery charger | 110V AC (16A 2P+E inlet) |
| Max Radio Transmitter Range | 1000m |
| DC Electric Motor Spec. (Rated V x Rated A) | 48V x 210A (10kW) |
| Thruster Spec. (Force / Revs) | 100kgm / 4000 revs/s |
| ML Capacity | 1100 Te.m² |

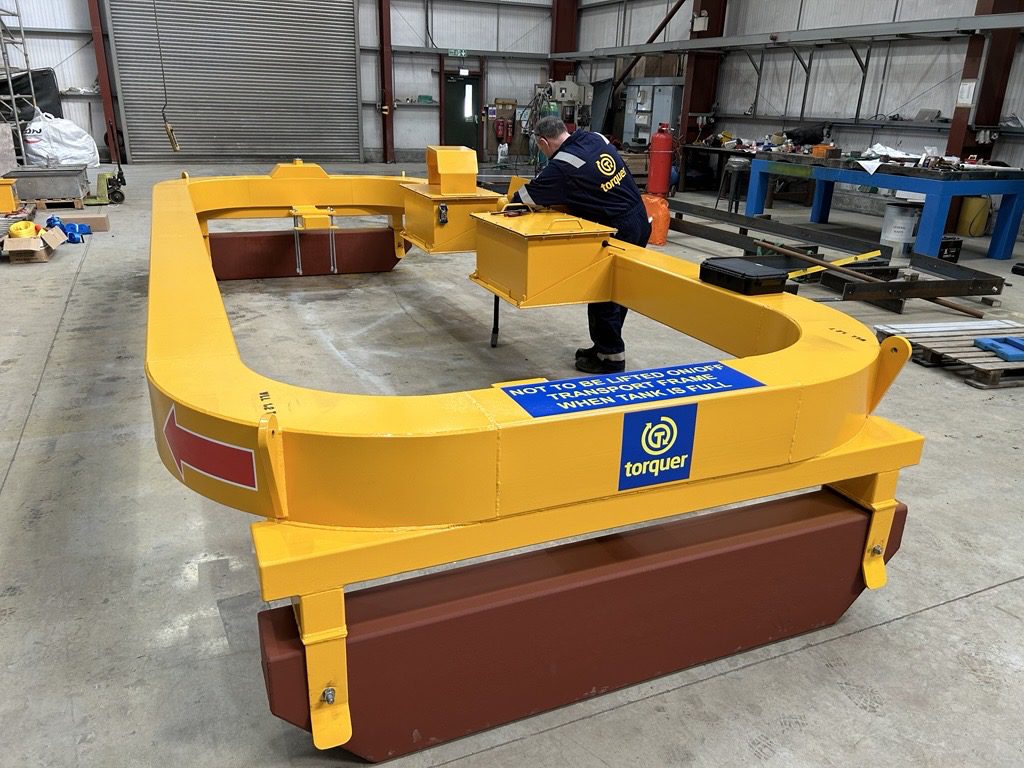

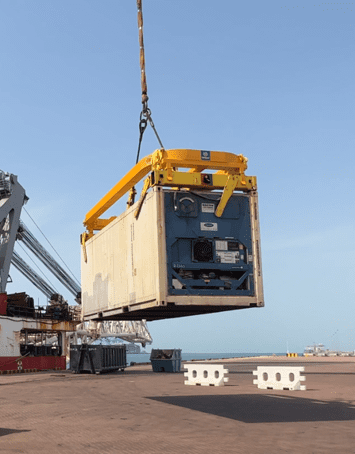

There are different methods for using a HALO to control container or cabin orientation. The example in this photograph shows a HALO which is set on top of an existing ISO lifting frame. However, the HALO can be built with it’s own frame, and either use ISO pocket auto locks, which can be radio remote controlled, or pad eye locks, or our patented SPEAR and Catcher system. Whichever method is chosen, they all result in a complete hands free solution, which is also faster to connect, move, position and disconnect these loads, either at a work site, or dock side.
Related Products
HALO 2000SP
This is the standard HALO device from Torquer, offering an ML2 of 350tm2 turning power. It has a 2.65m, 10Te spreader beam and a width of 1.8m, and weighs 1.8Te.
Modular HALO
The concept drawing above shows our latest design. This modular unit can be sized to fit any project and resized by extending or reducing the pipe sections.
