2Te SPEAR & Catcher

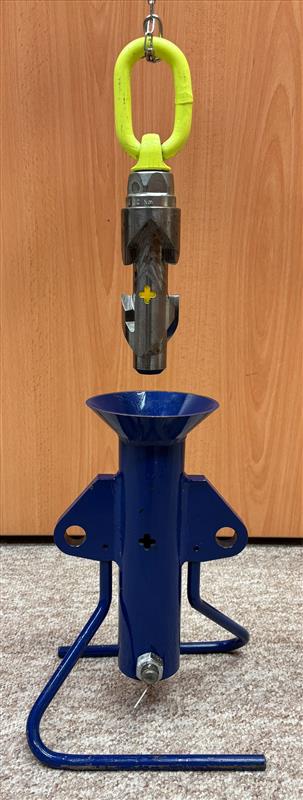

The 2Te SPEAR & Catcher is designed for a simple manual drop in, lock and lift, drop down and release operation on loads up to 2Te. An ideal application for pre-cast concrete loads, allowing safe, hands free lifting.
Specifications
| Item | Values |
| Catcher | 2″ Sch 40 (S316) x 1m |
| Catcher Weight | 6kg |
| SPEAR | (17/4 PH) 0.3m long x 50mm OD |
| SPEAR Weight | 6kg incl. Swivel |
| Swivel | Gunnebo BLP Z102016 |
| Shackle Size | 2.2Te |

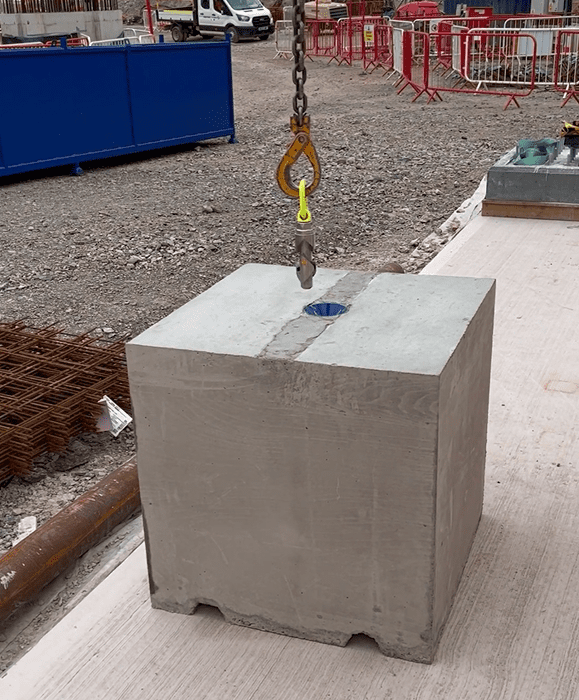

The 2Te SPEAR and Catcher is ideal for pre-cast concrete applications, or can be used standalone, connected by slings and shackles, with a simple method of automatically connecting to, lifting and releasing a load, providing a hands free method of lifting, and keeping personnel safely away from the moving load.
