150Te SPEAR & Catcher

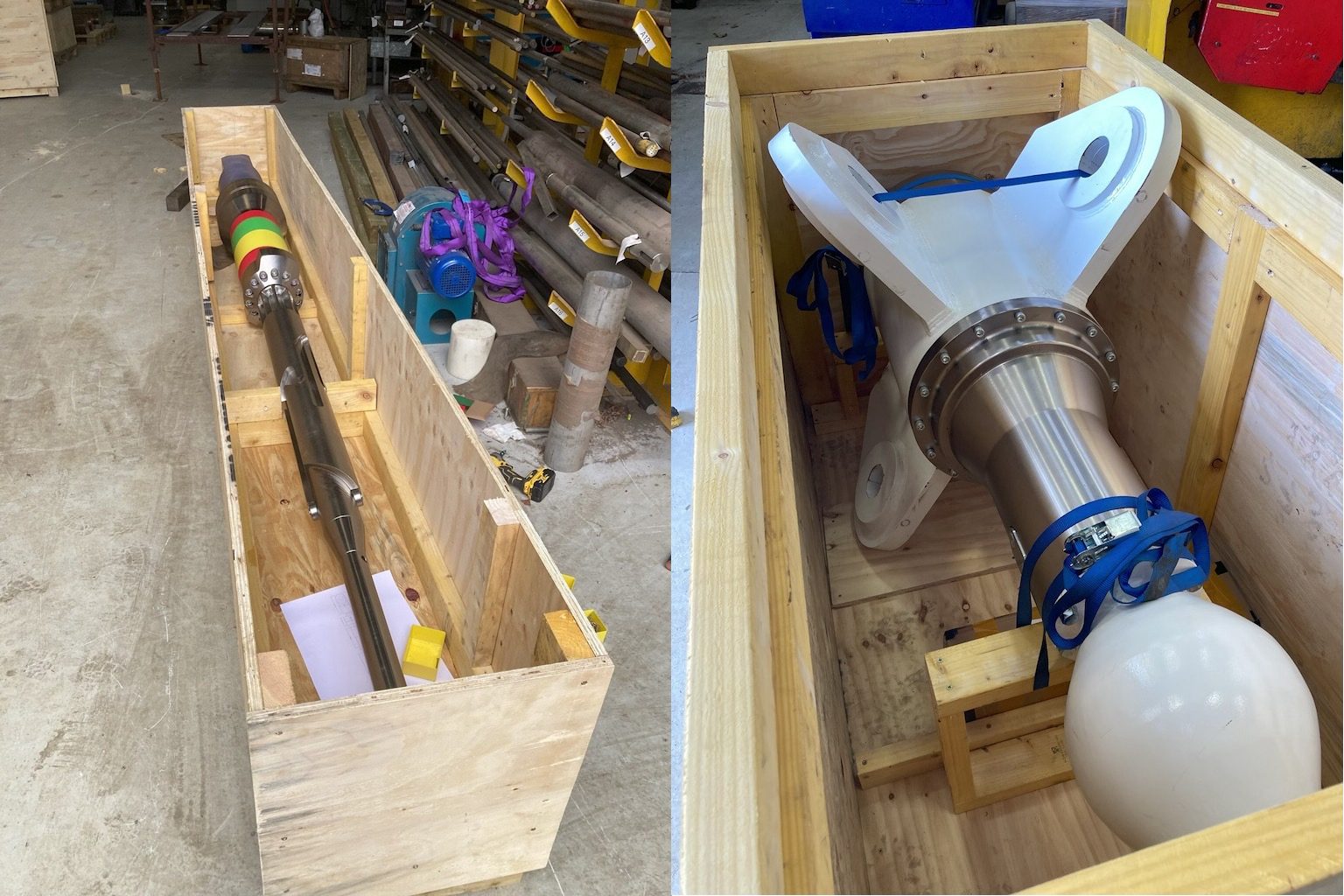

The 150Te SPEAR & Catcher is designed for a simple manual drop in, lock and lift, drop down and release operation on loads up to 150Te. It uses a unique combination of technologies to provide a guided hands free automatic heavy lifting capability.
Specifications
| Item | Values |
| Catcher | Custom Assembly |
| Catcher Weight | 758Kg |
| SPEAR | 145mm OD x 4.37m |
| SPEAR Weight | 982Kg |
| Shackle Size | 150Te |

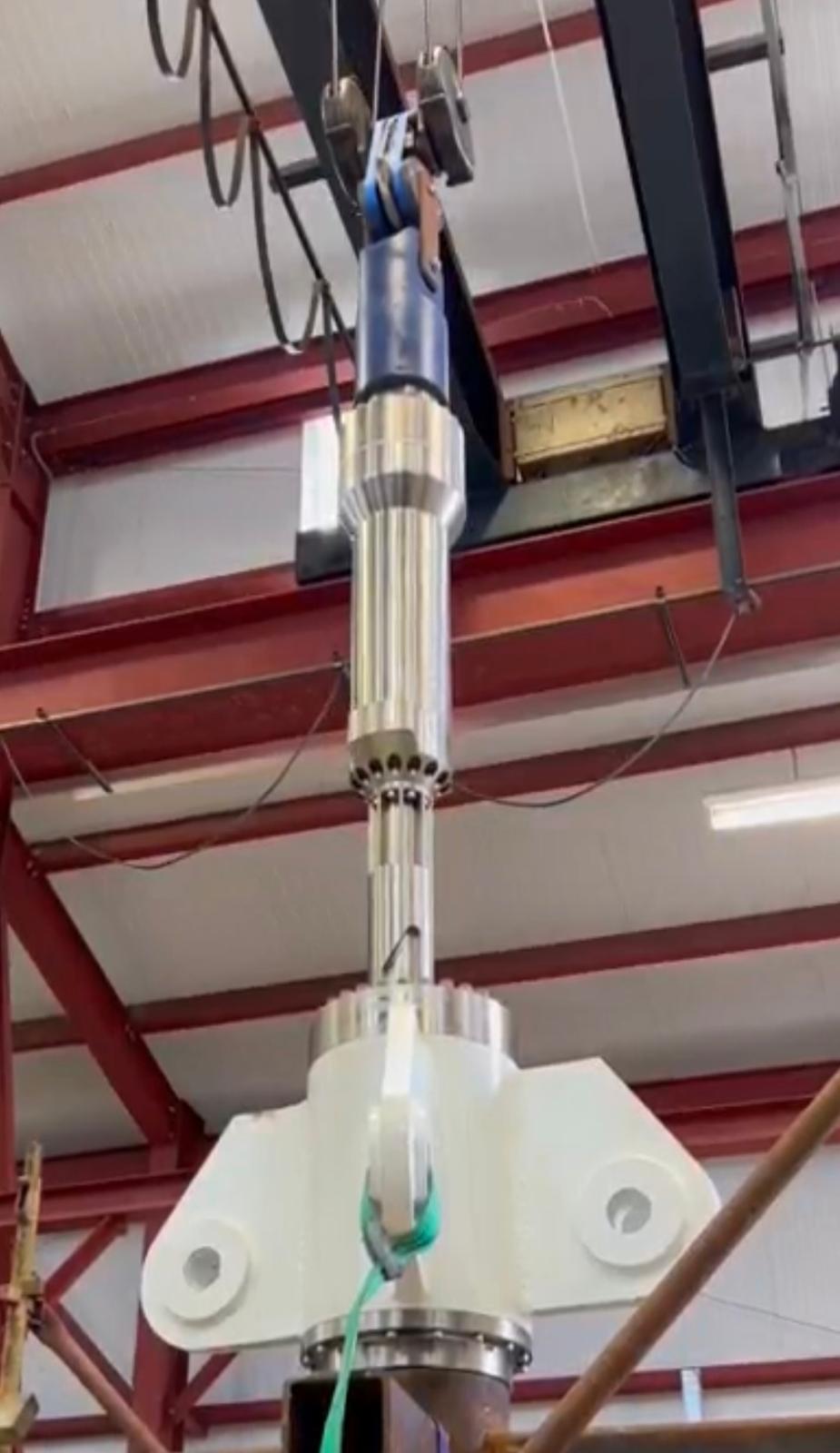

The 150Te SPEAR and Catcher provides a simple, yet effective method of automatically connecting to, lifting, landing and releasing loads up to 150Te. However, this method can be scaled to lift any required weight of load using the same technique. The Catcher can be attached to a lifting frame, or directly to the load if required. A unique combination of technologies provides a simple method, where the SPEAR, guided by the Catcher, rotates a sectored flange, attached to the SPEAR, into the lifting position, where it will engage with an identical sectored flange on the Catcher, allowing the whole assembly to lift the load. Lowering the SPEAR a second time rotates this flange into the release position.
Related Products
2Te SPEAR & Catcher
This short demo SPEAR was used with a catcher cast into a concrete block.
25Te SPEAR & Catcher
The 60Te precast block above is for a subsea application. Catchers are cast into the block at 4 corners, and the 4 matching SPEARs are attached to a lifting frame.
