25Te SPEAR & Catcher
The 25Te SPEAR & Catcher is designed for a simple manual drop in, lock and lift, drop down and release operation on loads up to 25Te. An ideal application for pre-cast concrete loads, allowing safe, hands free lifting.
Specifications
| Item | Values |
| Catcher | SHS 180×180 |
| Catcher Weight | 33Kg per m |

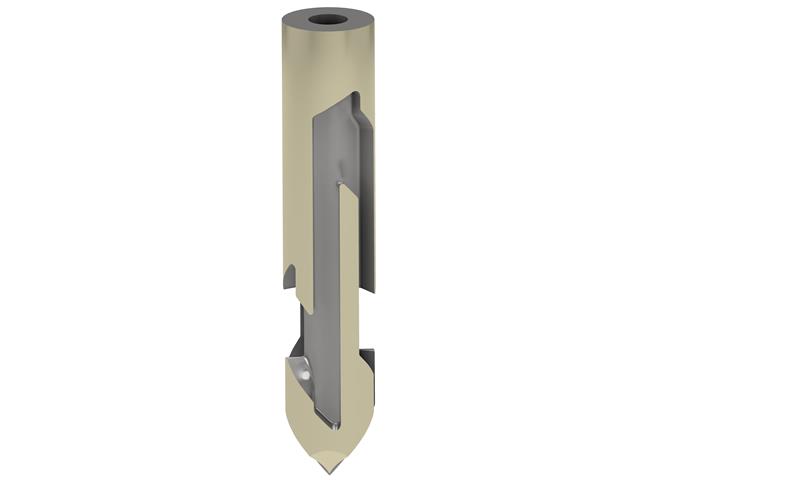

| SPEAR | 145mm OD x 725mm |
| SPEAR Weight | 66.5Kg incl. Swivel |
| Swivel | RUD VWBG 16 (25)t M64 Ringbolt |
| Shackle Size | 25Te |

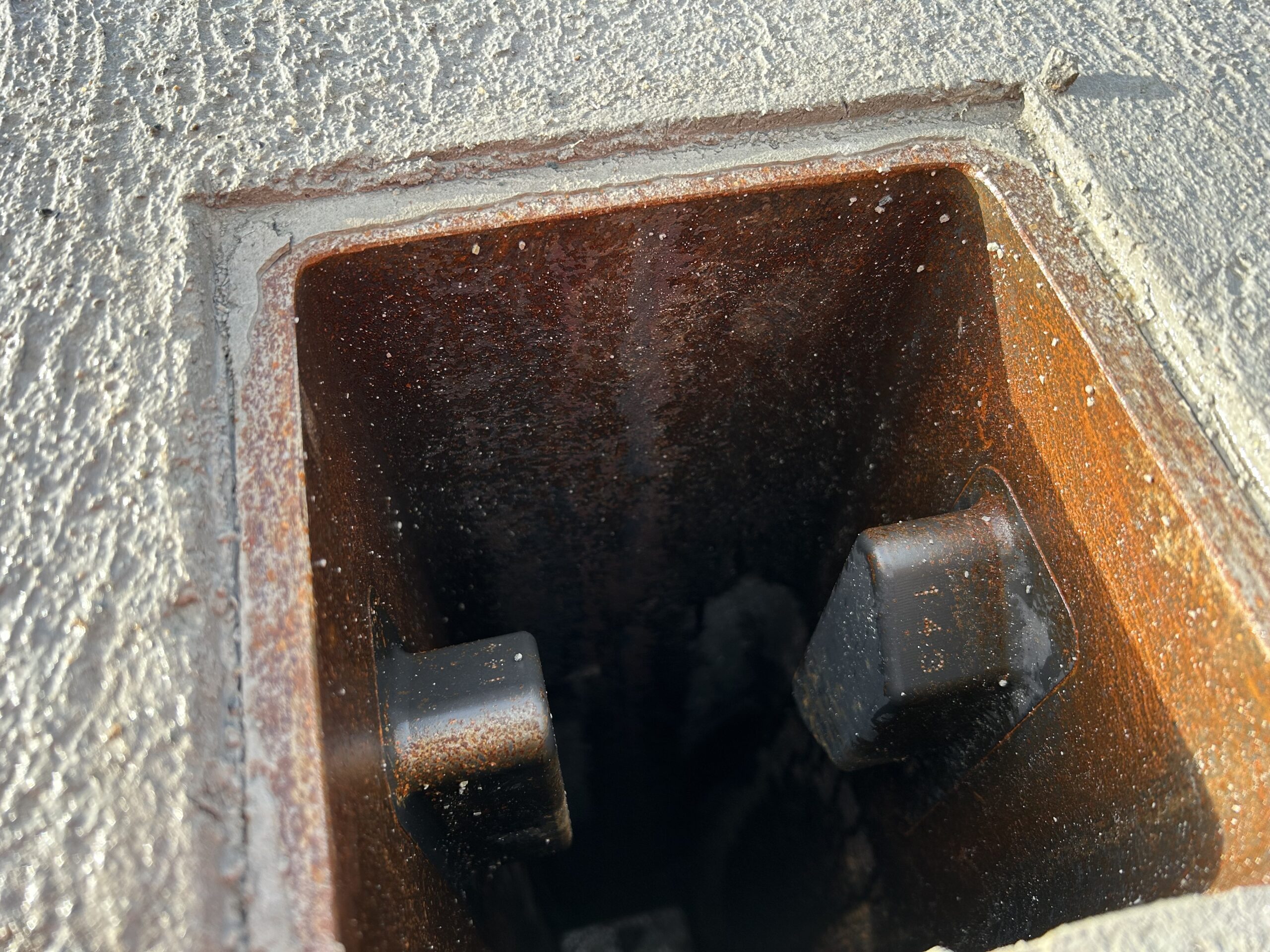

The 25Te SPEAR and Catcher is ideal for pre-cast concrete applications, or can be used standalone, connected by slings and shackles, with a simple method of automatically connecting to, lifting and releasing a load, providing a hands free method of lifting, and keeping personnel safely away from the moving load.
